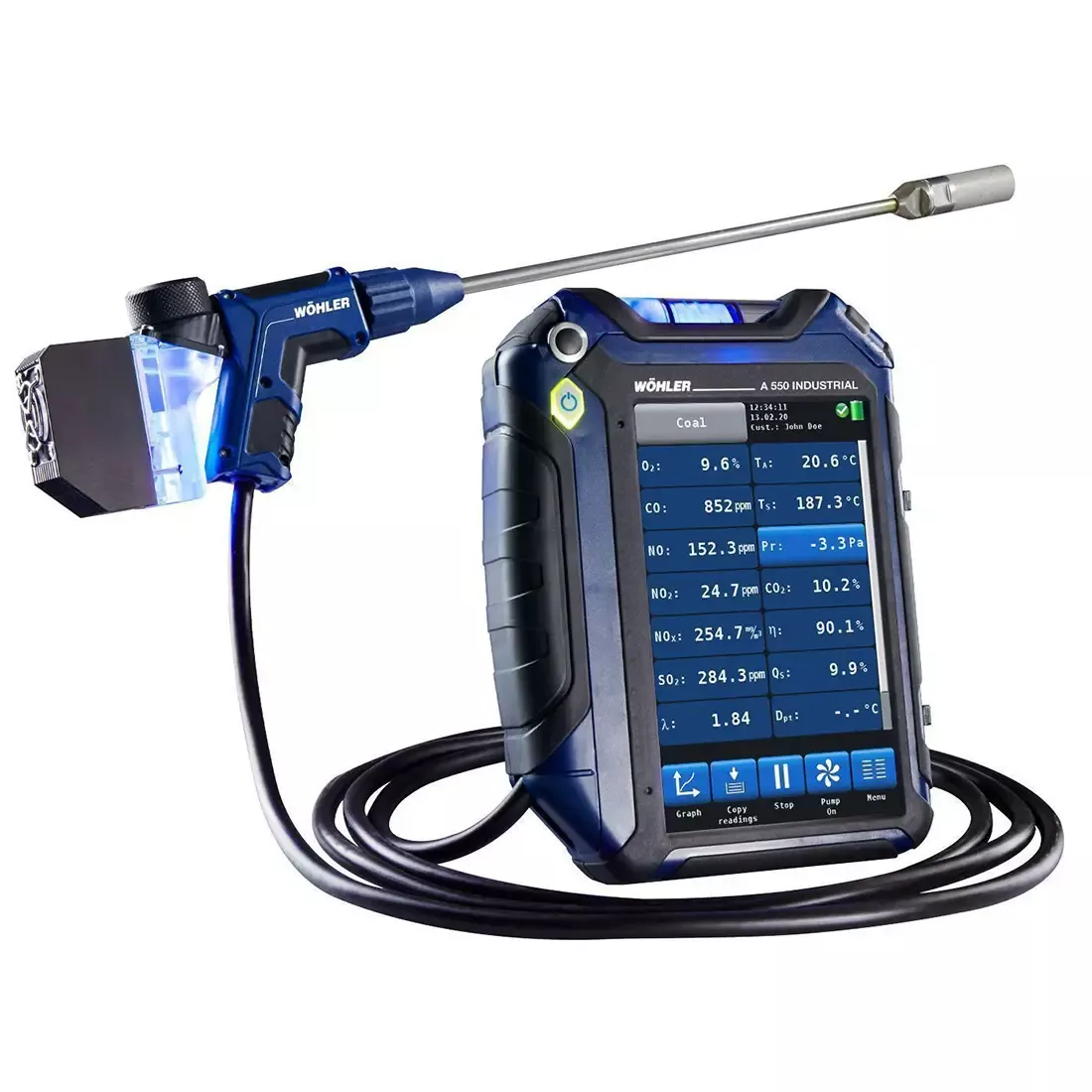

Wohler USA 2948

Description

• Built for tough environments due to sturdy housing
• Versatile for wide range of uses
• High temperature probe with in-stack sinter-filter
• Battery-driven Peltier cooler allows for optimal gas preparation for accurate measurements
• High-power sample pump for differential pressures
• Built-in logger function for long term measurements with user-selectable configuration
• Equips up to 5 sensors at a time, choice of 8 parameters in total
• User-friendly interface, large 7 in. color touchscreen
• Easy data transfer with multiple interfaces
• Includes O2, COH, NO, NO2, SO2 Sensors

Applications

• Heating Equipment Efficiency Testing
• Gas Pressure Testing
• Combustion Analyzation

Specifications

• Oxygen (O2) Range: 0.0 to 21 vol. %
• Carbon Monoxide (CO) Range: 0 to 100000 vol. ppm
• Nitric Oxide (NO) Range: 0 to 3000 vol. ppm
• Nitrogen Dioxide (NO2) Range: 0 to 1000 vol. ppm
• Sulfur Dioxide (SO2) Range: 0 to 5000 vol. ppm
• Flue Gas Range: 68°F to 1472°F
• Combustion Air Temperature Range: 68°F to 212°F
