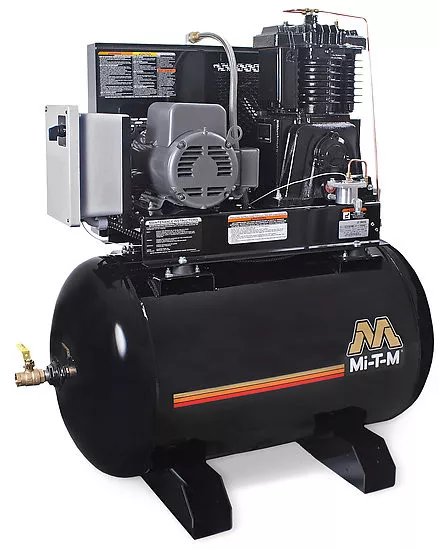

Mi-T-M ACS-23305-80HM Electric Air Compressors, 80-Gallon Two Stage Electric Hor

Description

Product Description

Compressor Pump: Quality two stage cast iron pump · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Oil lever sight indicator · Stainless-steel braided discharge hose for easy maintenance – won’t fracture with vibration · Flexible pump drain hoseMotor: Low RPM industrial electric motor · Magnetic start for thermal overload protectionFrame: Durable, professional, high gloss powder coat finish · ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed heavy-duty belt guard · Vibration isolator pads protect the tank from stressComponents: Large flywheel for extra cooling and longer life · ASME safety valves · Pressure gauge · Tank shut-off valve · Tank drain valve automatically drains liquid from air receiver · Intake filter/silencer · Belt tightening system pulls engine straight to ensure constant belt alignment · Hour meter displays the number of hours compressor has been in operation · Low oil shutdown shuts unit down when oil falls below adequate levels · Air-cooled after cooler removes up tp 65% fo moisture and drops temperature within 10-degrees of ambient

Specifications:

CFM @ 175 PSI :18.0Horsepower/Motor: 5.0 HP, 230V, 3Ø, 13.8ACompressor :Two Stage, cast ironTank Size :80-gallonMobility :Stationary Air CompressorsStage :Two Stage Air Compressors
